Editing Resources with Qt Designer

Qt Designer fully supports The Qt Resource System, allowing resources to be specified alongside forms as they are designed. To help designers and developers manage the resources that are needed by applications, Qt Designer's resource editor allows resources to be defined on a per-form basis.

Defining a Resource File

To specify a resource file you must enable the resorce editor by opening the Tools menu, and switching on the Resource Editor option.

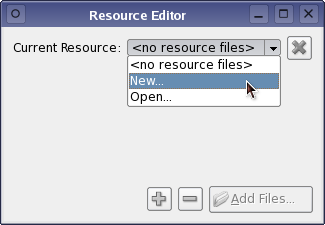

Resource Files Using the resource editor, you can either open existing resource files or create new ones. Click the Current Resource combobox to choose one or the other.

Once a resource file is loaded, you can create or remove entries in the file using the provided + and - buttons, and specify resources (for example images) using the Add Files button. Note that these resources must reside within the current resource file's directory or one of its subdirectories.

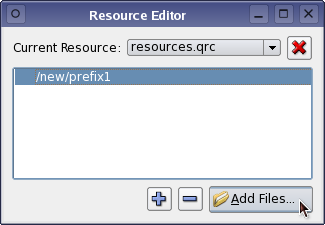

Editing Resource Files Press the + button to add a new resource entry to the file. Then use the Add Files button to specify the resource. You can remove resources by selecting the corresponding entry in the resource editor, and press the - button.

Using the Resources

When the resources are defined you can use them actively when composing your form. For example, you might want to create a tool button using an icon specified in the resource file.

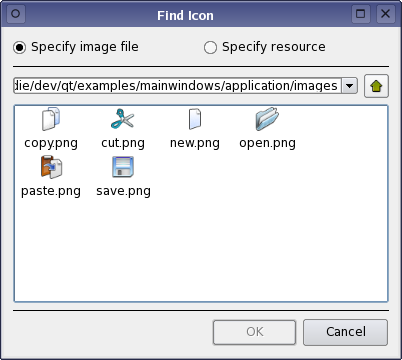

Using Resources When changing properties which values might be defined within a resource file, Qt Designer presents a dialog that allows you to specify a resource in addition to the option of selecting a source file in the ordinary way. You can open the resource editor to add new resources any time in the design process.
